Interactive math lessons and activities on NCTM

Posted by

1

Review by C. Elkins, OK Math and Reading Lady

Resource – http://illuminations.nctm.org

This is a math resource I absolutely love! It is a product of the National Council for the Teachers of Mathematics (NCTM).

This site includes lesson plans and interactive activities. Search in several ways: by topic, by standard, or by grade level. Need some strategy games? Check out “Calculation Nation” (some of which can be played against other players), and “Brain Teasers.” I have just added this link to my Resources page (on my blog home page).  Pass this along to parents for them to use with their children at home!

Many of the lessons connect to exploration projects and literature. The interactive features are outstanding!! These are perfect for the smartboard, on laptops, or tablets. Doing Zoom lessons? Then these are also wonderful for sharing the screen to introduce or review concepts. Once you are on the home screen, click the Interactives box (right side) and then the desired grade level. There are dozens of great applets, but here are a few you might really like. I have linked them for easy reference, so just click on the  title and you’ll be there:

Dynamic Paper: Customize graph paper, number lines, spinners, nets, number grids, shapes (to include pattern blocks, color tiles, and attribute blocks), and tessellations. You can also choose inches or cm. These can be customized, saved and printed as jpeg or pdf. I created the spinner shown here from this application.

Five Frame and Ten Frame tools: Geat activities to build number sense using five or ten frames. These may take 1-2 minutes to load.

Cubes: Build a rectangular prism one cube, or row, or layer at a time and then compute the volume or surface area.

Coin Box: Drag and exchange coins. There is also a feature I like (the grid at the bottom right corner), which puts coins in blocks (by 1s for pennies, 5s for nickels, 10s for dimes, and 25s for quarters). This really helps see the value of the coins. Want more info about coin blocks? Once on the Coin Box page, click on the “Related Resources” tab.

Try these for fractions: Fraction Models (which includes decimal and percent equivalencies) and the Fraction Game.

Geometric Solids: Create a shape (either transparent or solid) and swivel it around to see all of the faces, vertices, and edges. It has a cube and pyramid as far as basic 3D shapes are concerned. I wish it had more that 3rd-5th students would encounter.

Here’s a nice multiplication game:  Product Game  Two players (or a player vs. the computer) choose factors from the bottom bar to create products shown on the game board grid to get 4 in a row (and try to block your opponent from getting 4 in a row).  Be sure to see the directions included.

Some of the interactives require an NCTM subscription.  The ones I have listed above should be okay to access without membership. I have subscribed for years and just paid $94 for this coming year. Well worth it if you plan on using their site extensively.  This subscription also entitles you to a print and and online journal, blog capabilities, and more.

Enjoy these and so many more!!! Let us know if there are others you recommend.  I’ll highlight more on my next post.



Geometry Websites

Posted by

1

by C. Elkins, OK Math and Reading Lady

There are several great math websites which might help you and your students with geometry and measurement standards such as area, perimeter, volume, surface area, angles, etc.  The ones I am recommending are interactive and often customizable.  Check them out!! (Each title can be clicked to take you directly to the linked website.)

  1. Geoboard by The Math Learning Center:  I love the concept of geoboards to help children create polygons and measure area and perimeter.  However, most teachers have ditched their physical geoboards. They are often in boxes relegated to the basement storage areas.  I get it, though.  They take up a lot of shelf space in the class, there aren’t enough rubber bands to go around (aka geobands), the kids misuse them or break them, they don’t stretch far enough, the pegs get broken, etc.

I think you will LOVE this app. Check out the little “i” on how to get the most use out of it, but it has 2 variations for the board size and you can show it with/without gridlines or numbers. There are different colored bands which you drag to the board and stretch to whichever pegs you need. You can shade in areas, copy, and rotate (which is helpful to see if 2 similar shapes are equivalent). There is also a drawing palette in case you want to freehand something or draw lines (and with different colors as well).

What are the possibilities with this?

  • Use with primary students to create squares, rectangles, and other polygons. The teacher can elicit different responses with directions such as:  Make a square. Make a different size square. Make a trapezoid. Are any of our trapezoids the same?
  • Creations can sometimes be recorded on dot paper – although I would reserve this for less-complicated shapes.
  • Count the pegs around the shape to determine perimeter. The teacher might ask students to create a rectangle with a perimeter of 10 (or 12, or another amount). How many different ways are there? Be cautious with diagonal connections because they are not equivalent to vertical or horizontal connections. Think of how you can get students to discover this without just telling them.
  • Show the gridlines to help students determine area.  Initially,  students may just count the squares inside the shape. Guide students to more efficient ways to figure this (multiplying, decomposing into smaller sections, etc.).

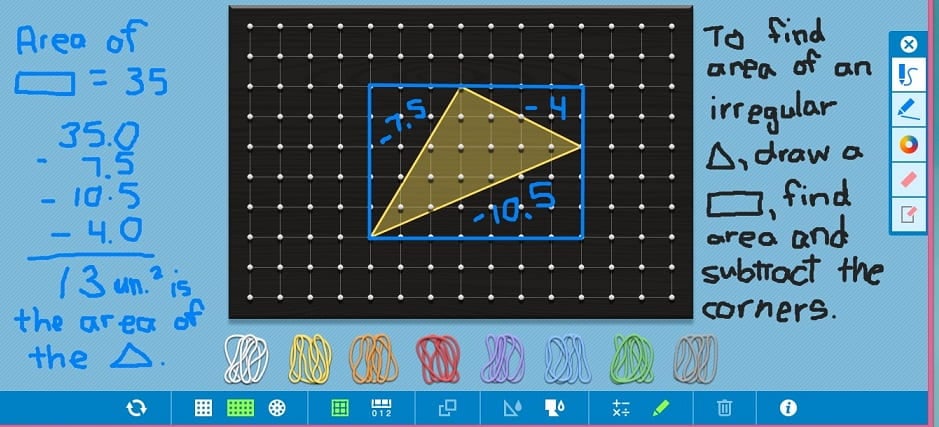

  • This app is also great for creating irregular shapes in which students may decompose into smaller rectangles or triangles. Then check them with the standard formulas.

2. “Cubes” at NCTM’s site (Illuminations):  This one is perfect for volume and surface area.

  • Volume:  You can use the gear symbol to select the size (l, w, and h) of the rectangular prism, or use the default ones shown. Then there are 3 tools used to fill the rectangular prism:  individual cubes, rows of cubes, or layers of cubes. I prefer using the layer tool to support the formula for volume as:  area of the base x height.  The base is the bottom layer (which can be determined by looking at the length x the width). The height is the number of layers needed to fill the prism. Once you compute the volume, enter it and check to see if it is correct.
  • Surface Area of Rectangular Prism:  To calculate the surface area, you must find the the area of each face of the prism. Again, you can customize the size using the gear tool.  I prefer this as the shapes shown randomly often are too small to see. Yes, there is a formula for surface area — but conceptually we want students to note the surface area can be thought of in three parts. With a click on each face, this app opens (or closes) a rectangular prism into the 6-faced net making it easier to see the equal sized sections:
    • Area of the front and area of the back are the same
    • Area of the top and area of the bottom are the same
    • Area of each side is the same
    • Be sure to explore what happens when the prism is a cube.

3.Surface area with Desmos:  This link provides an interactive experience with surface area, using a net. This time, the three visible faces of the prism are color coded, which helps with identifying top / bottom; front / back; and side / side. The prisms on this site are also able to be changed so students can see how altering one dimension affects the surface area.

4. “Lines” on GeoGebra

5. “Angles” on GeoGebra

6. “Plane Figures” on GeoGebra

These three may be more relevant to middle school math standards.  Check them out!!  Also take a look at the “Resources” link (left side of web page).  There are plenty of other good links for arithmetic standards as well – too many to list here.  You may have to create a log-in, but it’s FREE!

Enjoy!  Do you have other websites to recommend? Let us know.

Volume: Concrete activities to increase understanding (Grades 3-6)

Posted by

0

by C. Elkins, OK Math and Reading Lady

I have worked with several groups of 4th graders lately to build rectangular prisms as a way of learning more about volume. Typically students know the formula (length x width x height), but often lack the strategies or spatial ability to solve problems seen only in picture (2D form). Concrete (hands-on) experiences help cement knowledge when abstract formulas may pose difficulty. And . . . it’s always fun to “play” while doing math!!

Here are some observations regarding students’ difficulties:

  • Students often resort to counting the visible cubes, not realizing there are others on the back side – which can’t be seen on a 2D representation.
  • Students are unsure which dimensions are the length, width, and height.
  • Students lack multiplication skills.
  • Students don’t know the purpose of finding volume (other than counting the cubes).
  • Students are often confused when constructing prisms when one of the dimensions is 1. They weren’t sure this was even a possibility until they saw what it looked like (after building it!).

Some possible solutions:

Give students multiple opportunities to build 3D rectangular prisms:

  1. Length is the longest side on the base. Width is the shortest side on the base. The height is how tall it is.
  2. Use this variant of the L x W x H formula:  (Area of the base) x Height or (L x W) x H. With this mindset, the students need to find the length and width dimensions first. Finding the area of the base first helps them visualize the bottom layer. Then the height just means the number of total stacks or layers (with all of them matching the area of the base).
  3. Give students specific dimensions such as (5 x 3) x 2.
    • Using connecting cubes, build the base (bottom layer) first and determine the area (5 x 3 = 15).
    • Then build 1 more layer just like it so there is a total of 2 layers (the height).
    • Through this experience, students learn what a 5 by 3 base looks like . . . and that each layer of the height has the exact same area. It’s actually several layers stacked on top of each other.
    • To complete this prism, compute the area of the base (5 x 3) and then multiply it by the height (2). So (5 x 3) x 2 = 30 cubic units.
    • This experience shows why the measurement is stated as cubic units (because cubes were used).
    • Students may also see another way to solve the problem is to add the area of the base 2 times (15 + 15). Of course, multiplication is more efficient, but seeing the addition solution helps them realize each layer is the same.
    • Get this FREE Prism Building Activity and FREE Volume game for building rectangular prisms from me (click on links). For the game, you just need the recording sheet and 3 dice per pair of students.
    • Don’t have connecting cubes? Check with KG or 1st grade classes!
